Analog Devices Inc. EV1HMC574AMS8 Evaluation Board
Analog Devices EV1HMC574AMS8 Evaluation Board helps designers evaluate the features and capabilities of the HMC574AMS8E GaAs MMIC SPDT Switches. The HMC574AMS8E switches are well-suited suited for Cellular/3G infrastructure, WiMAX, and WiBro applications with a typical 0.3dB insertion loss.
The EV1HMC574AMS8 Evaluation Board features a PCB-mount SMA RF connector, DC Pin, 100pF capacitor, 10,000pF capacitor, 100Ω resistor, and the HMC574AMS8E T/R Switch.

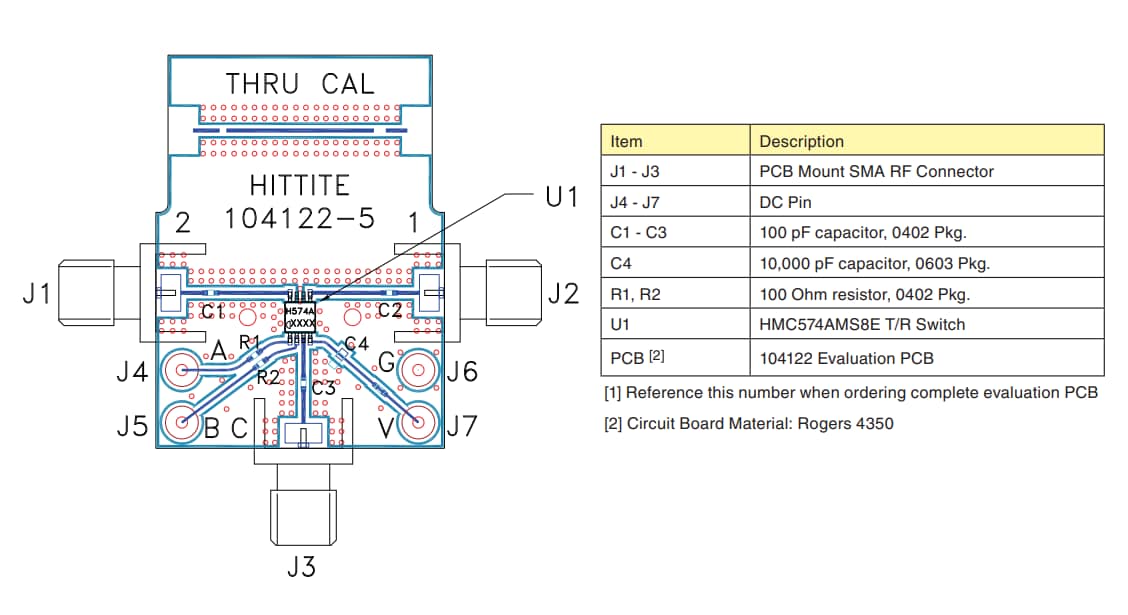

Board Diagram
