Analog Devices Inc. DC2728 Demo Circuit for LTC7880

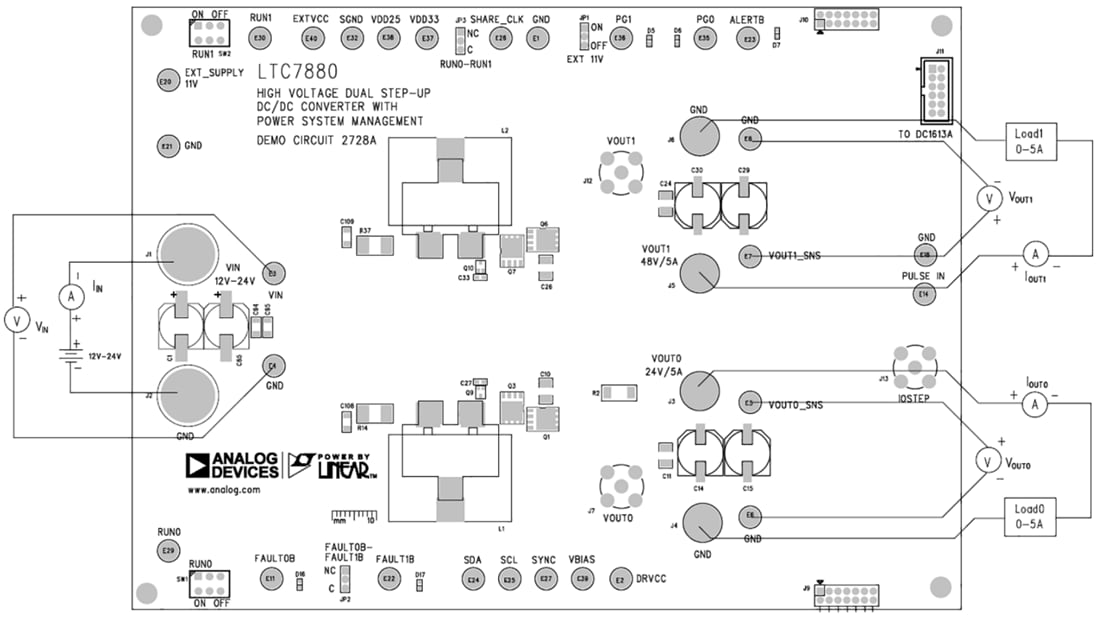

Analog Devices DC2728 Demo Circuit for LTC7880 is a high voltage, dual output boost converter with a 12V to 24V input range. The output voltage is adjustable from V_IN to 48V. Each output can supply a 5A maximum load current. The demo board has an LTC7880 controller, which is a 60V dual-output step-up controller with digital power system management. The Analog Devices DC2728A powers up to default settings and produces power based on configuration resistors or its nonvolatile memory (NVM) without the need for any serial bus communication. This allows for easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto a PC and use ADI’s I²C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view the telemetry of voltage, current, temperature, and fault status.
