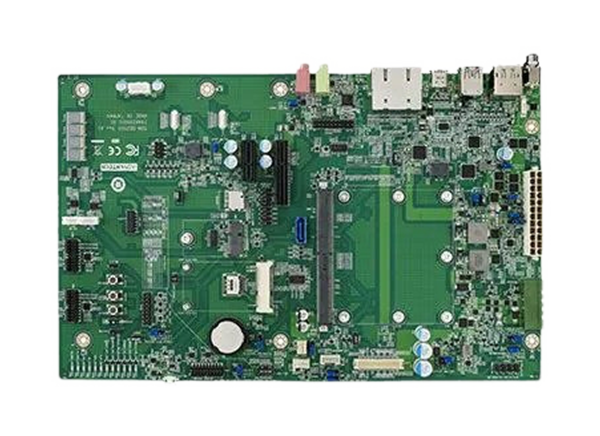

Advantech SOM-DB2500 Development Board for SMARC
Advantech SOM-DB2500 Development Board for SMARC features support for several types of displays like LVDS, eDP, DP++, and HDMI. The board has support for PCIe with a SIM card socket, M.2 (E-Key), SATA, USB3, USB Type-C, and Micro SD card. It supports a standard ATX power supplier or a 12V DC-IN adapter.
Features
- Support SMARC V2.0/2.1 Module
- Support several types of display: LVDS, eDP, DP++, HDMI
- Support PCIe with SIM card socket, M.2 (E-Key), SATA, USB3, USB Type-C, Micro SD card
- Supports standard ATX power supplier or 12V DC-IN adapter
- Visible Debug Utility: BIOS Port 80 and Power State

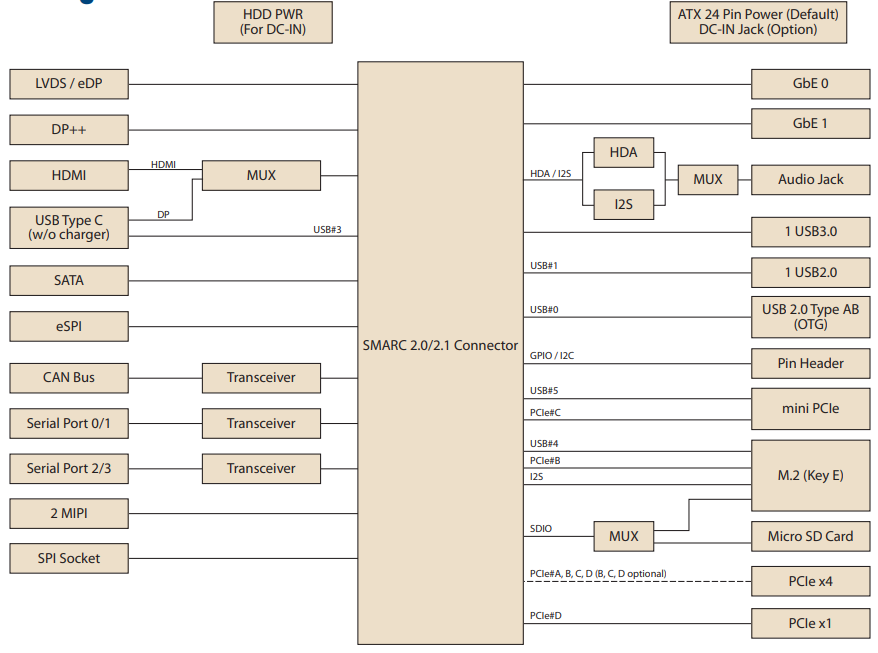

Block Diagram
