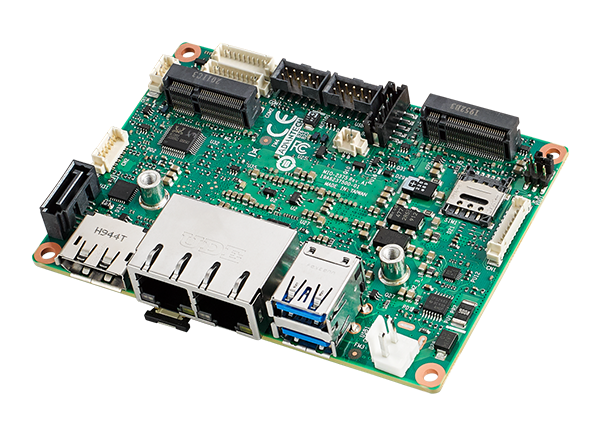

Advantech MIO-2375 Single Board Computers

Advantech MIO-2375 Single Board Computers feature an Intel® Tiger Lake-UP3 (10nm++) series processor with quad/dual cores. The boards have an on-board LPDDR4x-4267 with up to 32G with IBECC. The MIO-2375 have a dual independent display with eDP/MIPI-DSI, and DP up to 8K.


  • Intel® Tiger Lake-UP3 (10nm++) Series, Onboard LPDDR4x-4266 up to 32G with IBECC
  • Dual independent display: eDP/MIPI-DSI, DP up to 8K
  • Rich I/O interface with GbE x 2, USB 3.2, COM Port, DIO SMBus, TPM2.0
  • Flexible expansion to IoT connectivity: M.2 E-Key, M.2 B-Key/M-Key NVMe x2
  • Supports Advantech iManager3.0, Embedded Software APIs, WISE-DeviceOn, and Edge AI Suite

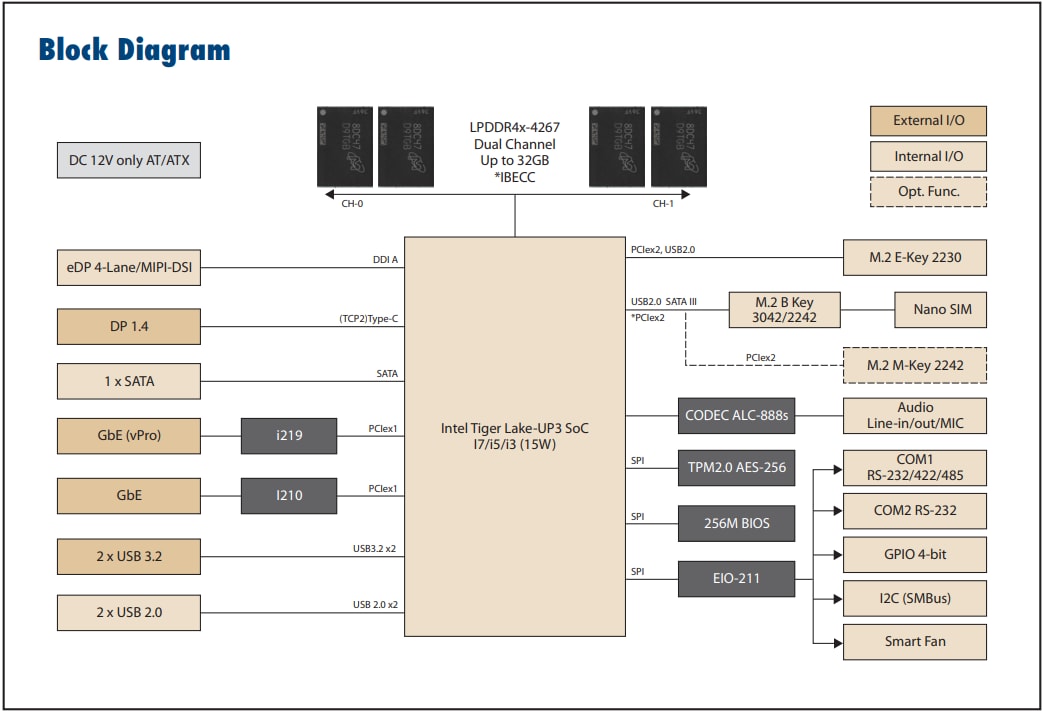

Block Diagram

Block Diagram - Advantech MIO-2375 Single Board Computers
發佈日期: 2021-10-04 | 更新日期: 2022-03-11
