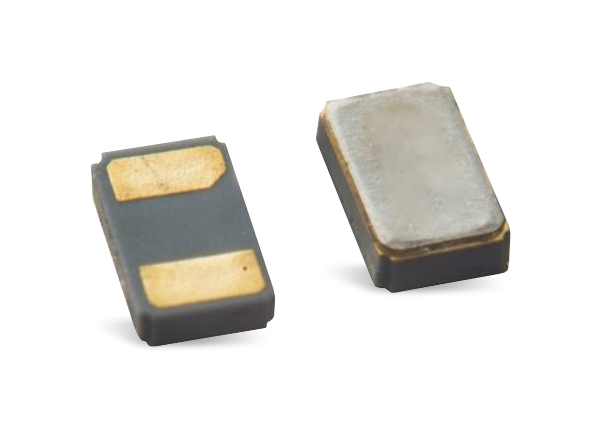

Abracon ABS05/ABS05W 32.768kHz Internet of Things (IoT) Optimized SMD Crystals feature an exceptionally low 4pF or 12.5pF plating load with simultaneous ESR optimization over an extended operating temperature range. The seam-sealed ABS05W components provide long-term reliability with a 20ppm tolerance and 0.5µW maximum drive level. ABS05 and ABS05W crystals are offered with operating temperature ranges from -40° up to +85°, +105°, or +125°C. These Abracon IoT crystals are ideal for wearables, wireless modules, BLUETOOTH®, machine-to-machine connectivity, NFC, and ultra-low power applications.
Exceptionally low plating load of 4.0pF or 12.5pF and ideal for wearables, wireless, and IoT applications
Simultaneously optimized for ESR over an extended operating temperature range
Available with ±20ppm set tolerance
Miniature 1.6mm x 1.0mm x 0.5mm SMD package, ideally suited for space-constrained designs
