Abracon AB-RTC-XL Low-Power Real-Time Clocks (RTCs)
Abracon AB-RTC-XL Low-Power Real-Time Clocks (RTCs) are ultra-low-power RTC modules with an embedded 32.768kHz crystal oscillator. These devices use an I2C communication interface to configure numerous features while maintaining frequency accuracy (±20ppm at +25°C) in a compact, lead-free ceramic 3.2mm x 1.5mm SMD package.
These features include a digital offset function, alarm and timer function capability, oscillator stop detection, and an internal power-on reset function. The RTC has a broad operating power supply range of 0.9V to 5.5V with low power consumption (190nA at 3V).
The Abracon AB-RTC-XL Low Power RTCs are ideally suited for battery-powered Internet of Things (IoT) devices, wearable and portable electronics, energy-harvesting systems, telematics and infotainment, and smart home devices. Automotive qualification according to AEC-Q200 (AB-RTC-XLA) is also available for high-reliability applications such as advanced driver assistance systems.
Features
- 3.2mm x 1.5mm package size
- ±20ppm time accuracy at -40°C to 85°C
- Wide -40°C to +85°C operating temperature range
- 0.9V to 5.5V operating voltage range
- 190nA ultra-low-power consumption at 3V
- 400kHz I2C-bus interface
- 2000 to 2099 automatic leap year calculation
- User programmable offset value
- Temperature compensation
- Extended temperature operation
- Oscillator stop detection
- Compact form factor
Applications
- Advanced driver assistance systems
- Telematics and infotainment
- Energy-harvesting systems
- Event data loggers
- Smart home devices
- Satellites/UAVs/drones
- Embedded control systems
- Smart metering
- Wearable and portable electronics
- Battery-powered IoT devices
Datasheets

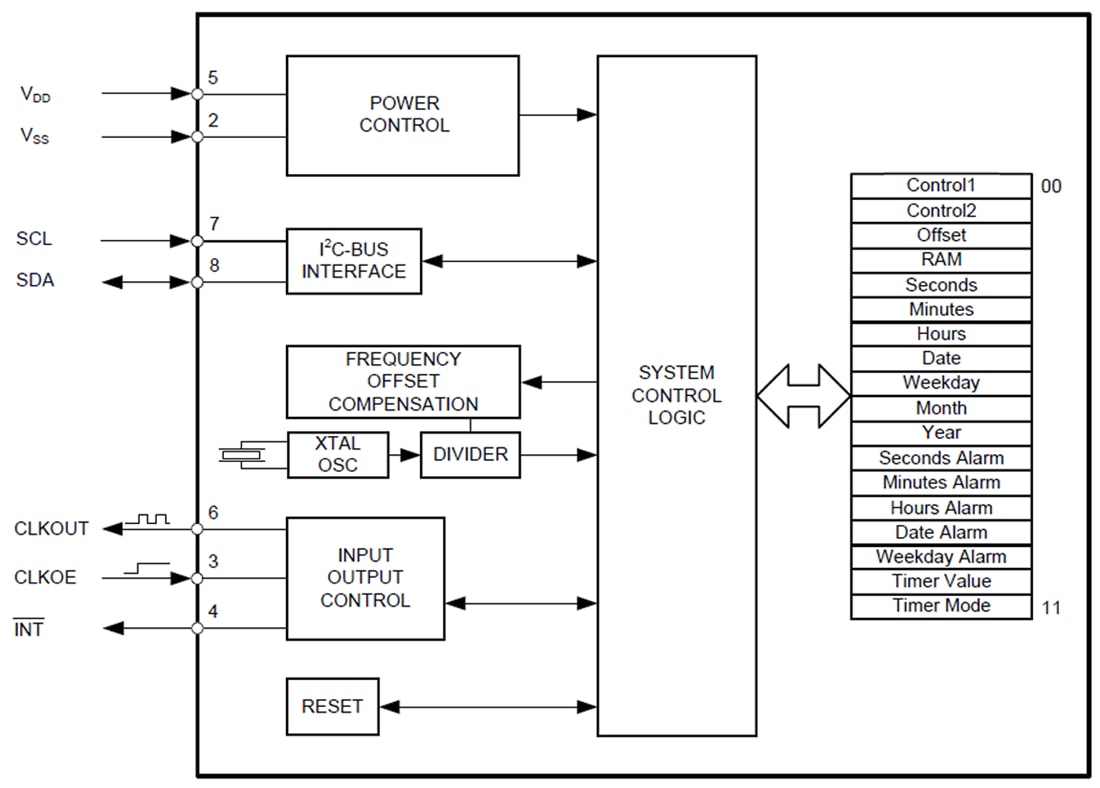

Block Diagram
