TFM-110-02-L-D-LC

Name: Samtec TFM-110-02-L-D-LC
Brand: Samtec
SKU: 200-TFM11002LDLC
Price: 26.14 HKD
Availability: InStock

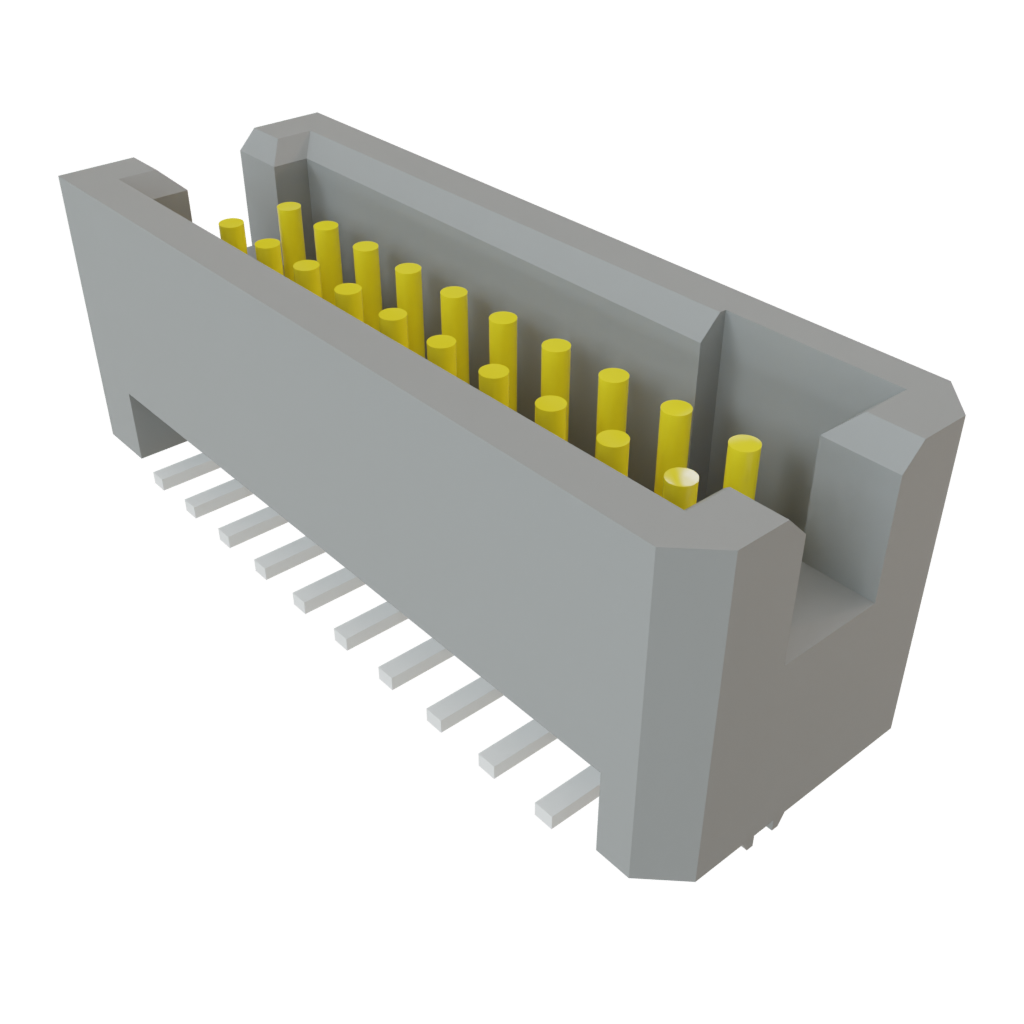

影像僅供參考
請參閱產品規格

Mouser 編號：

200-TFM11002LDLC

製造商編號：

TFM-110-02-L-D-LC

製造商：

Samtec

說明：

集管和線殼 High-Reliability Tiger Eye Terminal Strips

規格書:

TFM-110-02-L-D-LC 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec TFM-110-02-L-D-LC的資訊

庫存量: 88

庫存：: 88 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 3 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$26.14	HK$26.14
	HK$24.00	HK$600.00
	HK$20.30	HK$2,192.40
	HK$18.66	HK$9,404.64
	HK$17.10	HK$17,236.80
	HK$15.54	HK$39,160.80
	HK$14.30	HK$71,557.20

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	集管和線殼
RoHS:
產品:	Headers
類型:	Shrouded
定位數:	20 Position
間距:	1.27 mm (0.05 in)
排數:	2 Row
安裝風格:	SMD/SMT
終端類型:	Solder
裝配角:	Straight
聯繫人性別:	Pin (Male)
觸點电镀:	Gold
系列:	TFM
公司名稱:	Tiger Eye
應用:	Board-to-Board, Cable
線規:	30 AWG to 28 AWG
最低工作溫度:	- 55 C
最高工作溫度:	+ 125 C
封裝:	Tube
品牌:	Samtec
觸點材料:	Phosphor Bronze
额定电流:	3.2 A
易燃性等級:	UL 94 V-0
外殼顏色:	Black
外殼材料:	Liquid Crystal Polymer (LCP)
產品類型:	Headers & Wire Housings
原廠包裝數量:	36
子類別:	Headers & Wire Housings
額定電壓:	250 VAC
每件重量:	438.250 mg

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

Tiger Eye TFM/SFM 1.27mm Terminals & Sockets

Samtec Tiger Eye TFM/SFM 1.27mm Terminals and Sockets are designed for micro rugged, high-reliability, high-cycle applications. These Tiger Eye terminals and sockets feature multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments, and are available in vertical, right-angle, and horizontal orientations. Samtec Tiger Eye TFM/SFM 1.27mm Terminals and Sockets have through-hole or surface-mount terminations and 0.050" (1.27mm) pitch.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.

Tiger Eye™ TFM系列0.050"間距端子板

Samtec Tiger Eye™ TFM系列0.050"間距端子板是專為微型、強固型、高可靠度、高循環週期的應用所設計。Tiger Eye採用多點、經過熱處理、專為強固型環境所設計的鈹銅 (BeCu) 接點。本連接器提供垂直、直角和水平等方向，端子則分為穿孔或表面黏著形式。另外也選擇性提供對齊腳位、鎖定夾、雙螺絲固定或焊接片，讓您的設計更有彈性。
