SFSD-10-28C-H-12.00-S

Name: Samtec SFSD-10-28C-H-12.00-S
Brand: Samtec
SKU: 200-SFSD1028CH1200S
Price: 64.61 HKD
Availability: InStock

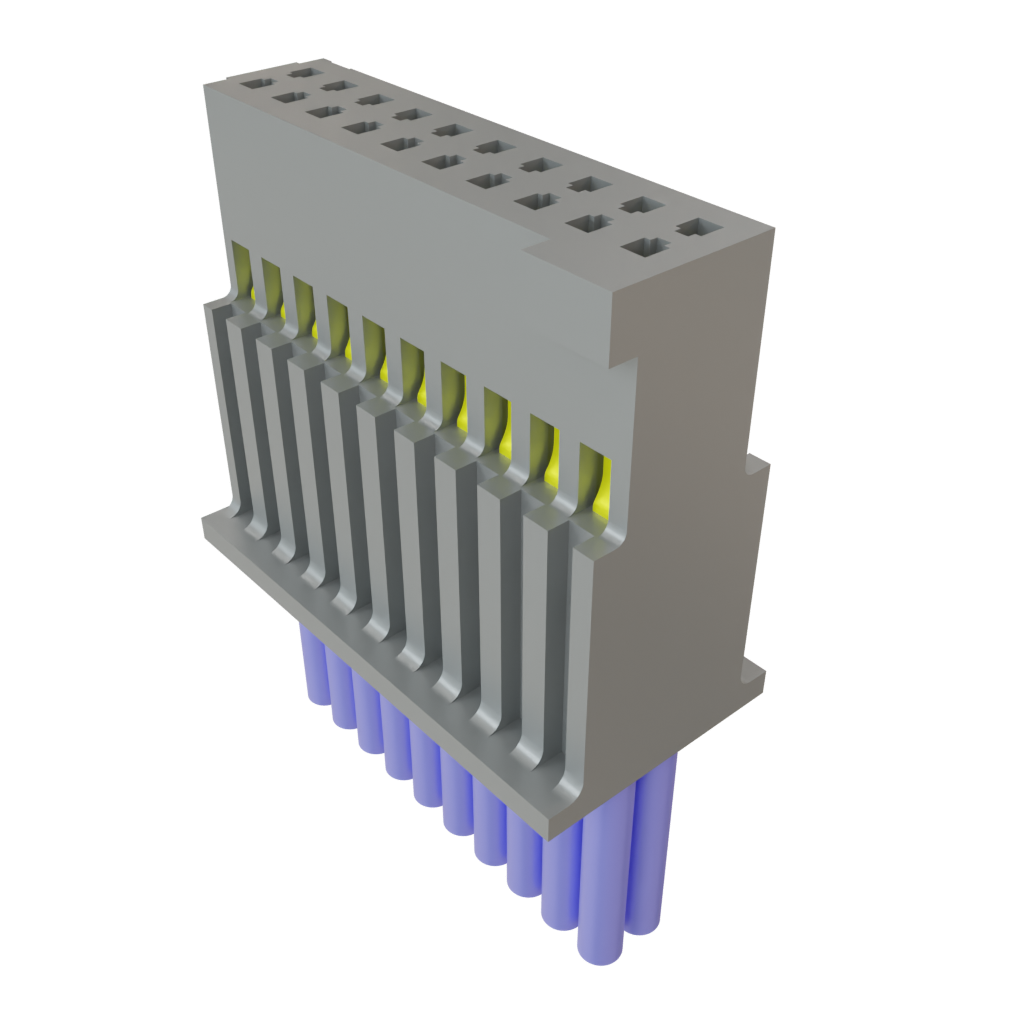

影像僅供參考
請參閱產品規格

Mouser 編號：

200-SFSD1028CH1200S

製造商編號：

SFSD-10-28C-H-12.00-S

製造商：

Samtec

說明：

矩形電纜組件 .050 Tiger Eye Double Row Discrete Wire Cable Assembly

規格書:

SFSD-10-28C-H-12.00-S 規格書 (PDF)

ECAD模型:

下載免費的庫載入器，為ECAD工具轉換此文件。瞭解更多關於 ECAD 型號的資訊。

更多資訊

瞭解更多關於Samtec SFSD-10-28C-H-12.00-S的資訊

庫存量: 1

庫存：: 1 可立即送貨

發生意外錯誤了。請稍後再試。
工廠前置作業時間：: 5 週工廠預計生產時間數量大於所顯示的數量。

輸入數量：

最少： 1 多個： 1

單價:

HK$-.--

總價:

HK$-.--

估計關稅:

Pricing (HKD)

數量	單價	總價
	HK$64.61	HK$64.61
	HK$59.68	HK$596.80
	HK$56.72	HK$1,418.00
	HK$46.85	HK$4,685.00
	HK$44.31	HK$22,155.00
	HK$39.29	HK$39,290.00
	HK$34.20	HK$68,400.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

商品屬性	屬性值	選擇屬性
製造商:	Samtec
產品類型:	矩形電纜組件
RoHS:
系列:	SFSD
產品:	Discrete Wire Cable Assemblies
類型:	Double Row Discrete Cable
連接器A端:	Socket
連接器A端針腳數:	20 Position
連接器B端:	No Connector
性別:	Female
電纜長度:	304.8 mm
線規 - AWG:	28 AWG
额定电流:	2.9 A
封裝:	Bulk
品牌:	Samtec
組裝國家:	Not Available
擴散國:	Not Available
原產國:	US
描述/功能:	Double Row Polarized Cable Assembly
外殼材料:	Polyvinyl Chloride (PVC)
間距:	1.27 mm
產品類型:	Rectangular Cable Assemblies
原廠包裝數量:	1
子類別:	Cable Assemblies
公司名稱:	Tiger Eye
額定電壓:	280 VAC

找到產品:

若要顯示類似商品，請選取至少一個核選方塊

至少選中以上一個核取方塊以顯示在此類別中類似的產品。

所選屬性: 0

篩選文檔:

規格書

SFSD-10-28C-H-12.00-S 規格書 (PDF)

Images

圖像

Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.

SFSD & SFSDT Tiger Eye™ Discrete Cable Assemblies

Samtec SFSD and SFSDT Tiger Eye™ Discrete Cable Assemblies feature a polarized double-row system with up to 100 pins and a 2.9A rating per pin. The SFSD cable assembly offers a 30AWG to 28AWG PVC wire connection, while the SFSDT assembly has a Teflon^®cable. The discrete cable assemblies feature a voltage rating of 235V_AC to 275V_AC, depending on the model. Samtec SFSD and SFSDT Tiger Eye Discrete Cable Assemblies mate with TFM, and TFC, and have a -40°C to +125°C operating temperature, depending on the model.
