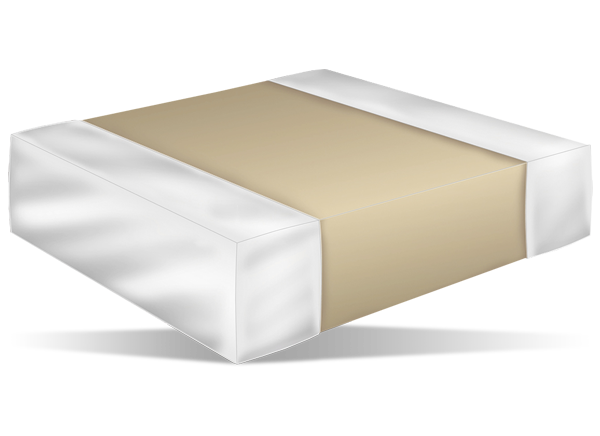

KEMET X7R和C0G汽車級多層陶瓷電容器(MLCC)
KEMET的X7R和C0G汽車級表面貼裝式多層陶瓷電容器(MLCCs)適用於要求可靠操作的各類應用。KEMET的X7R和C0G汽車級 SMD MLCC經受過更嚴格的測試協定和檢驗標準，以用於惡劣的應用環境。X7R和C0G汽車級電容器均擁有125ºC的最大操作溫度。KEMET汽車級系列電容器符合嚴格的汽車電子協會的AEC-Q200品質要求，並採用一流的ISO/TS 16949:2002認證設備製造。
特點
- High voltage
- -55°C to +125°C operating temperature range
- AEC-Q200 qualified and Class I rated
- Lead free, RoHS and REACH compliant
- Temperature-stable dielectric
- 10VDC to 250VDC voltage rating range
- 0.5pF to 0.47µF capacitance range
- Low ESR and ESL
- C0G
- -55°C to +125°C operating temperature range
- RoHS compliant
- EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes
- 10VDC to 200VDC voltage rating range
- 0.5pF up to 0.47µF capacitance range
- No piezoelectric noise
- Low ESR and ESL
- X7R
- -55°C to +125°C operating temperature range
- Lead free and RoHS compliant
- Temperature-stable dielectric
- 6.3VDC to 250VDC voltage rating range
- 150pF to 22µF capacitance range
- Non-polar device, minimizing installation concerns
- 100% pure matte tin-plated termination finish allowing for excellent solderability
- X8R
- -55°C to +150°C operating temperature range
- Low ESR and ESL
- High thermal stability
- High ripple current capability
- No capacitance change with respect to applied rated DC voltage
- Non-polar device, minimizing installation concerns
- Offered in both commercial and automotive grades
Learn More
High-Voltage MLCCs - These MLCCs exhibit no capacitance change with respect to time and voltage and exhibit a very small change in capacitance with respect to the ambient temperature. They are ideal for circuits with pulse and circuits requiring low loss. Datasheet
C0G MLCCs - C0G capacitors exhibit no change in capacitance with respect to time and voltage. They also offer a negligible change in capacitance with reference to ambient temperature. Datasheet
X7R MLCCs - The X7R series boasts a minimal change in capacitance with reference to ambient temperature and exhibits a predictable change in capacitance with respect to time and voltage. Datasheet
X8R MLCCs - These dielectrics feature a +150°C maximum operating temperature, making them reliable for extreme temperature applications. These ultra-stable dielectric capacitors are ideal for critical applications that require reliability and capacitance stability at higher operating temperatures. Datasheet
