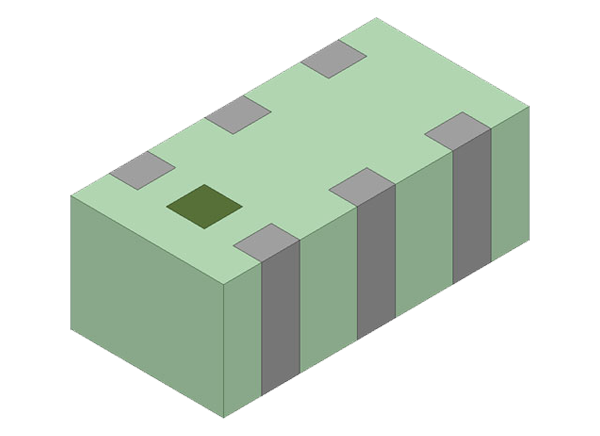

Johanson Technology 2450DP14B7200 & 2450DP14B7200T-AEC RF Diplexers
Johanson Technology 2450DP14B7200 and 2450DP14B7200T-AEC RF Diplexers feature Ultra Wide Band (UWB) and BLUETOOTH® Low Energy (BLE) technologies used in security access and asset tracking. Johanson Technology 2450DP14B7200 and 2450DP14B7200T-AEC RF Diplexers include commercial and automotive (AEC-Q200 qualified) versions. These 2400MHz to 2500MHz or 6200MHz to 8200MHz passband diplexers operate over a -40°C to +105°C operating temperature range.
Features
- Mini passive RF diplexers
- UWB and BLE technologies
- Commercial and automotive (AEC-Q200 qualified) versions
Applications
- Security access
- Asset tracking
Specifications
- 2400MHz to 2500MHz or 6200MHz to 8200MHz passband
- 10dB minimum return loss
- Isolation
- 25dB minimum at 2.4GHz to 2.5GHz
- 20dB minimum at 6.2GHz to 8.5GHz
- 1W maximum power capacity
- -40°C to +105°C operating temperature range
