The IXGA20N250HV IGBT enables a single device in systems whose circuits previously used multiple cascaded lower-voltage switches. Such device consolidation reduces the number of power devices and improves cost and efficiency by eliminating complex drive and voltage balancing components. In systems whose circuits previously utilized high voltage SCRs, this high-voltage IGBT provides the designer with a true switch to easily implement signal modulation schemes. This ability improves efficiency, simplifying wave-shaping and enabling load disconnection for improved system safety. Traditional high voltage EMRs and discharge relays can also be replaced, reducing system complexity and improving overall reliability.

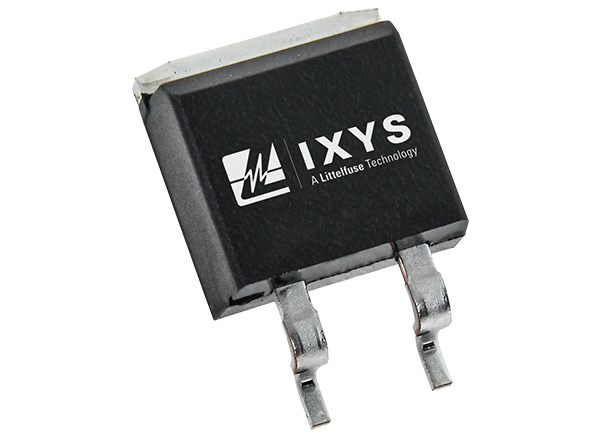

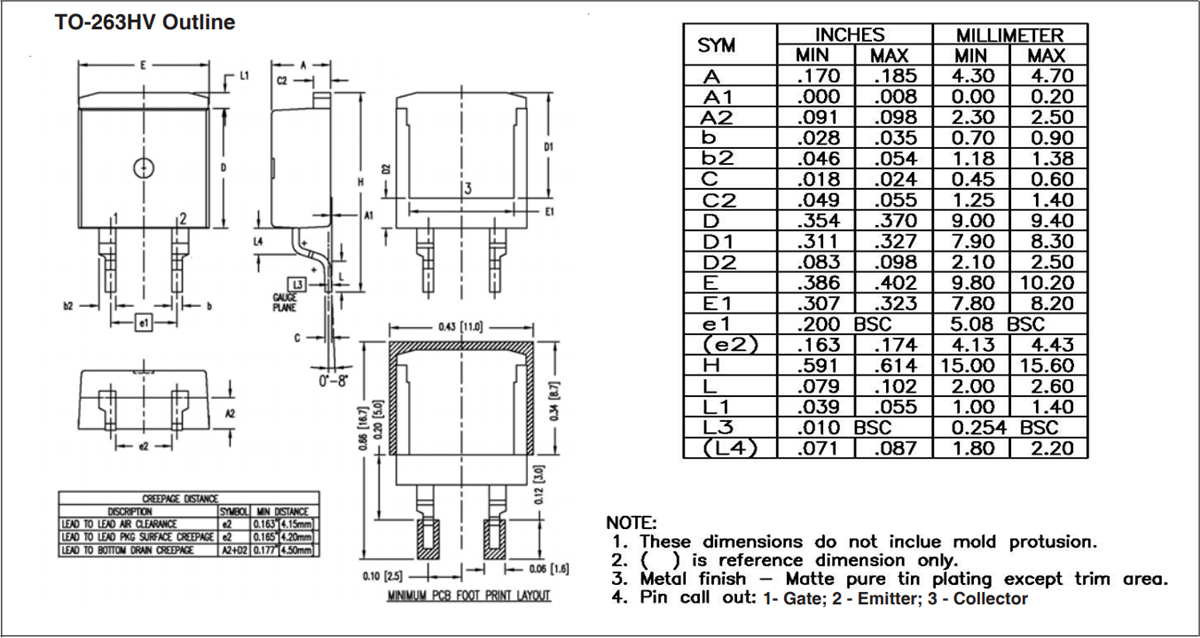

The IXYS IXGA20N250HV High Voltage IGBT is offered in an industry-standard TO-263HV package and features a -55°C to +150°C junction temperature range.
