ABLIC S-82P1A & S-82P1B Battery Protection ICs

ABLIC S-82P1A and S-82P1B Battery Protection ICs for lithium-ion and lithium-polymer rechargeable batteries include high-accuracy voltage detection circuits and delay circuits. The ICs are suitable for protecting 1-cell lithium-ion and lithium-polymer rechargeable battery packs from overcharge, over-discharge, and overcurrent. These ICs realize high-accuracy overcurrent protection with less effect from temperature change by using an external overcurrent detection resistor. The S-82P1A and S-82P1B ICs feature discharge overcurrent control function and detection delay times that are generated only by an internal circuit. These S-82P1A and S-82P1B ICs operate from -40°C to 85°C temperature range and -55°C to +125°C storage temperature range.


  • Detection delay times are generated only by an internal circuit (external capacitors are unnecessary)
  • 0V battery charge:
    • Enabled, inhibited
  • Power-down function:
    • Available, unavailable
  • Discharge overcurrent control function:
    • Load disconnection: Release condition of discharge overcurrent status
    • Release voltage of discharge overcurrent status: Discharge overcurrent release voltage (VRIOV) = VDD × 0.8 (typ.)
  • Lead-free (Sn 100%), halogen-free
  • High-withstand voltage:
    • VM pin and CO pin: 28V absolute maximum rating
  • S-82P1A:
    • HSNT-8(1616) package
  • S-82P1B:
    • SNT-6A package


  • Lithium-ion rechargeable battery pack
  • Lithium polymer rechargeable battery pack


  • High-accuracy voltage detection circuit:
    • 3.500V to 4.800V (5mV step) with accuracy ±15mV of overcharge detection voltage range
    • 3.100V to 4.800V with accuracy ±50mV of overcharge release voltage range
    • 2.000V to 3.000V (10mV step) with accuracy ±50mV of overdischarge detection voltage range
    • 2.000V to 3.400V with accuracy ±75mV of the over-discharge release voltage range
    • 3mV to 100mV (0.25mV step) with accuracy ±0.75mV of discharge overcurrent detection voltage1 range
    • 6mV to 100mV (0.5mV step) with accuracy ±2mV of discharge overcurrent detection voltage2 range
    • 20mV to 100mV (1mV step) with accuracy ±5mV of load short-circuiting detection voltage range
    • -100mV to -3mV (0.25mV step) with accuracy ±0.75mV of charge overcurrent detection voltage range
  • Low current consumption:
    • 2μA typical, 4μA maximum (Ta = 25°C) during operation
    • 50nA maximum (Ta = 25°C) during power-down
    • 0.5μA maximum (Ta = 25°C) during over discharge
    • Ta = -40°C to 85°C wide operation temperature range
  • -55°C to 125°C storage temperature range
  • -40°C to 85°C operating temperature range

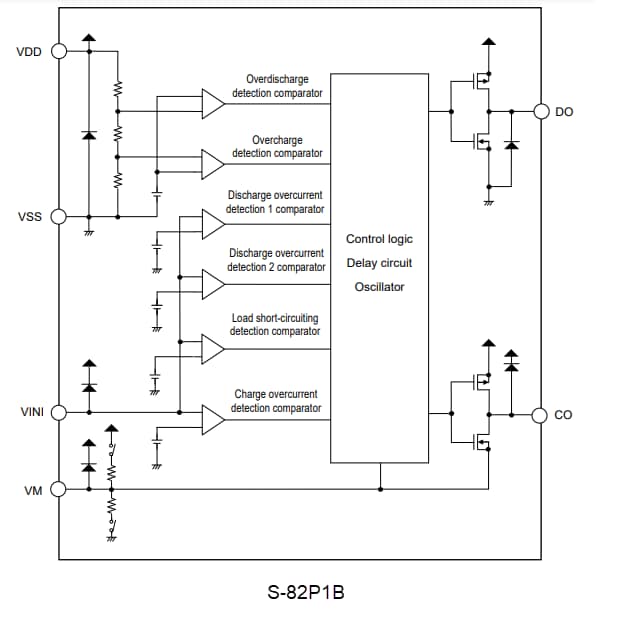

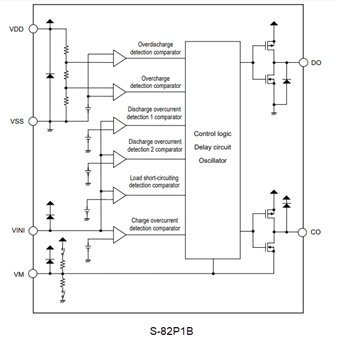

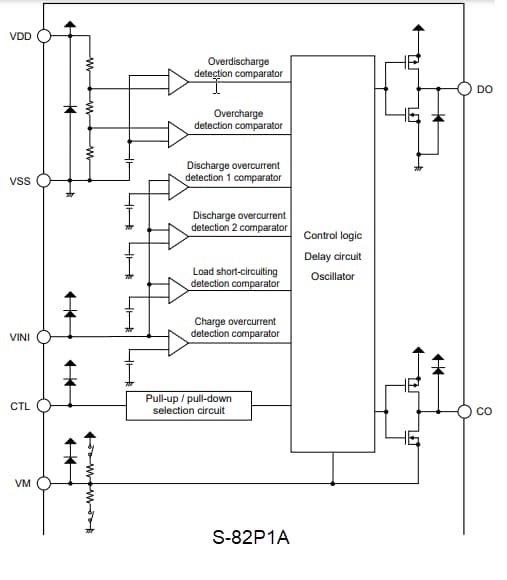

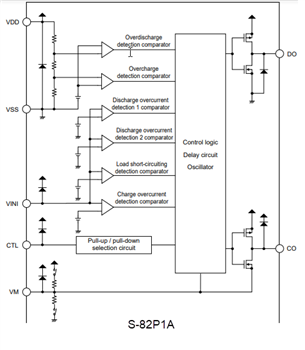

Block Diagrams
